Remote Controlled Heavy Lift By Auxx Lift Upto 600 Lbs Lifting Capacity

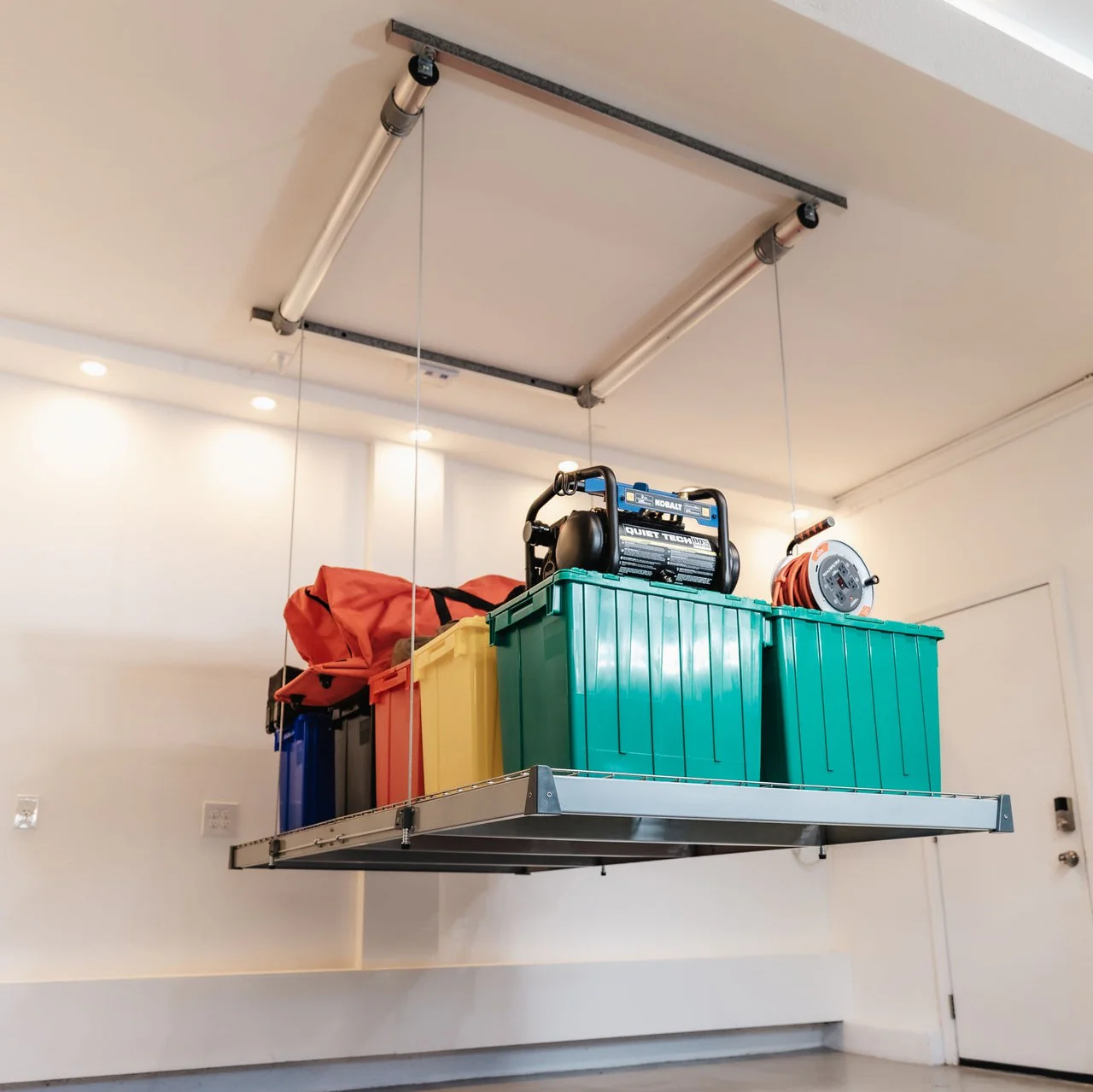

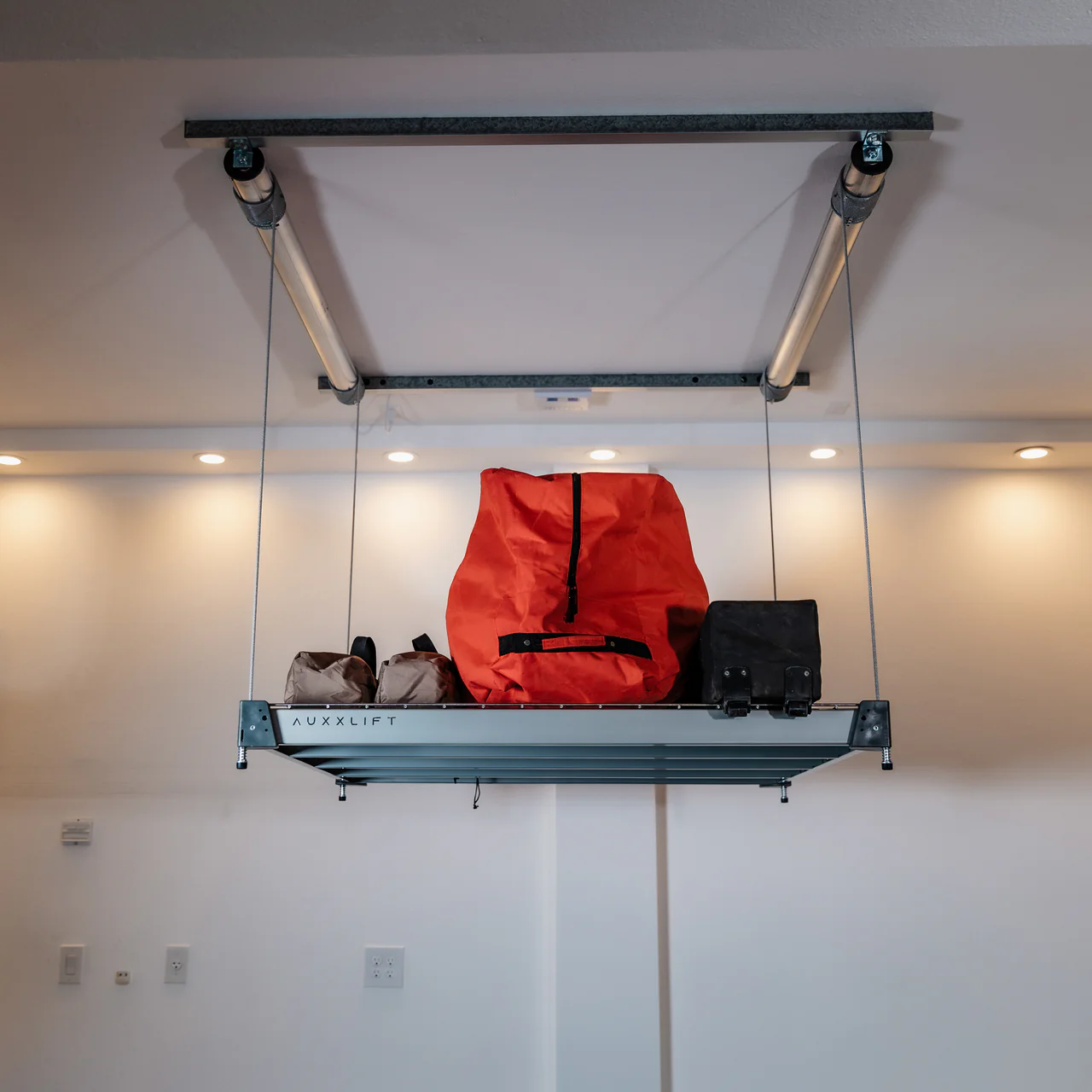

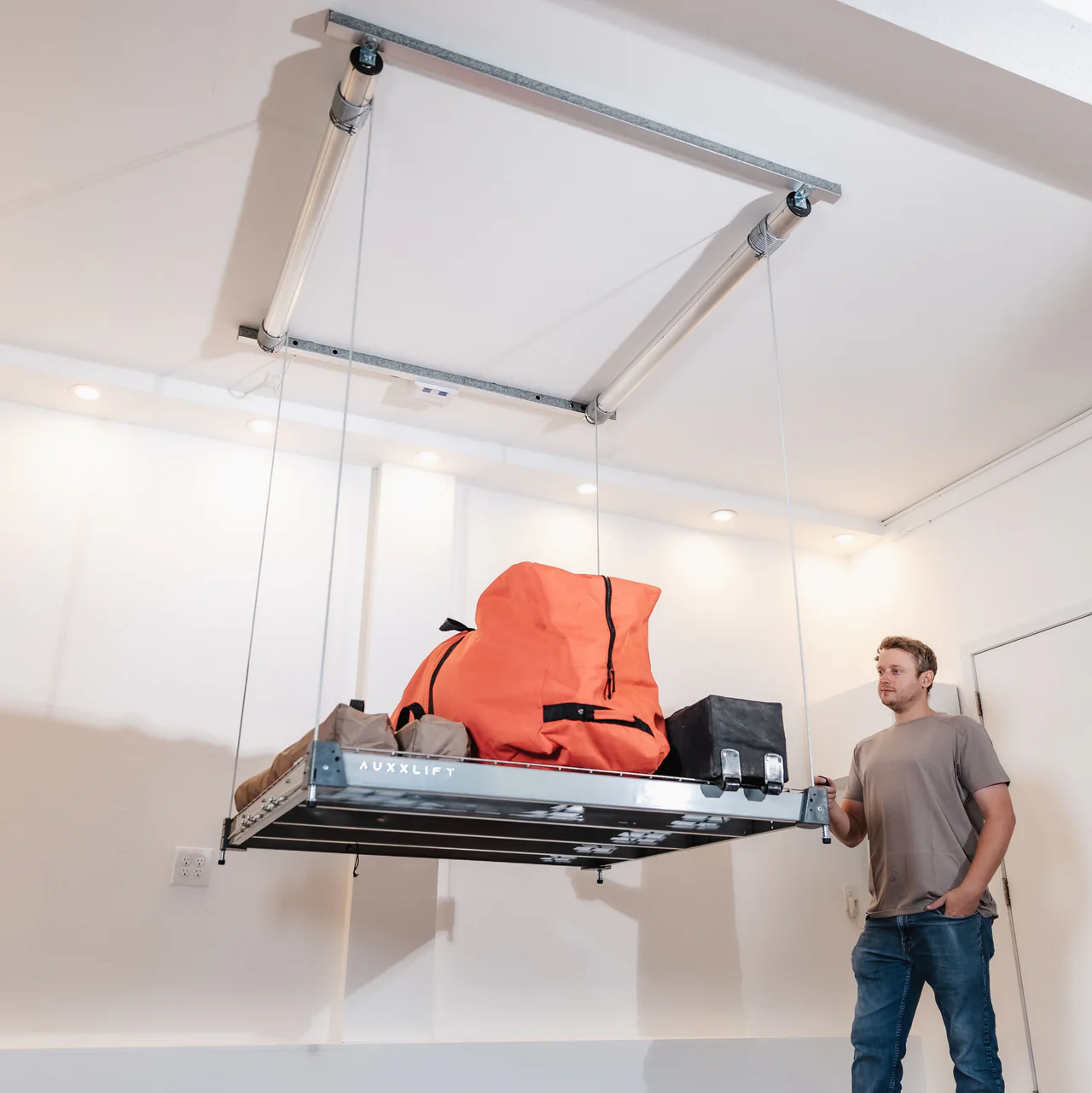

The Remote Controlled Heavy Lift by Auxx offers advanced control and versatility for your lifting needs. Effortlessly lift and maneuver heavy objects with precision and ease using the remote control. Enjoy increased efficiency and safety with this state-of-the-art heavy lifter. Easily store your items with the push of a button.

• Lift up to 600 Lbs
• Steel aircraft cables
• Made in USA – Uses SPAX® Fasteners
• Easy installation (but installers are available)
• Built-in safety features – the only lift tested to UL Standards

Specifications:

• Model: Auxx-Lift 1600
• Lifting Capacity: Up to 600 lbs
• Max. Travel Distance: 13′-6” (18′-0″ w/ Extension)
• Min. stored height in
• Speed: Avg 30sec for 9′ ceilings

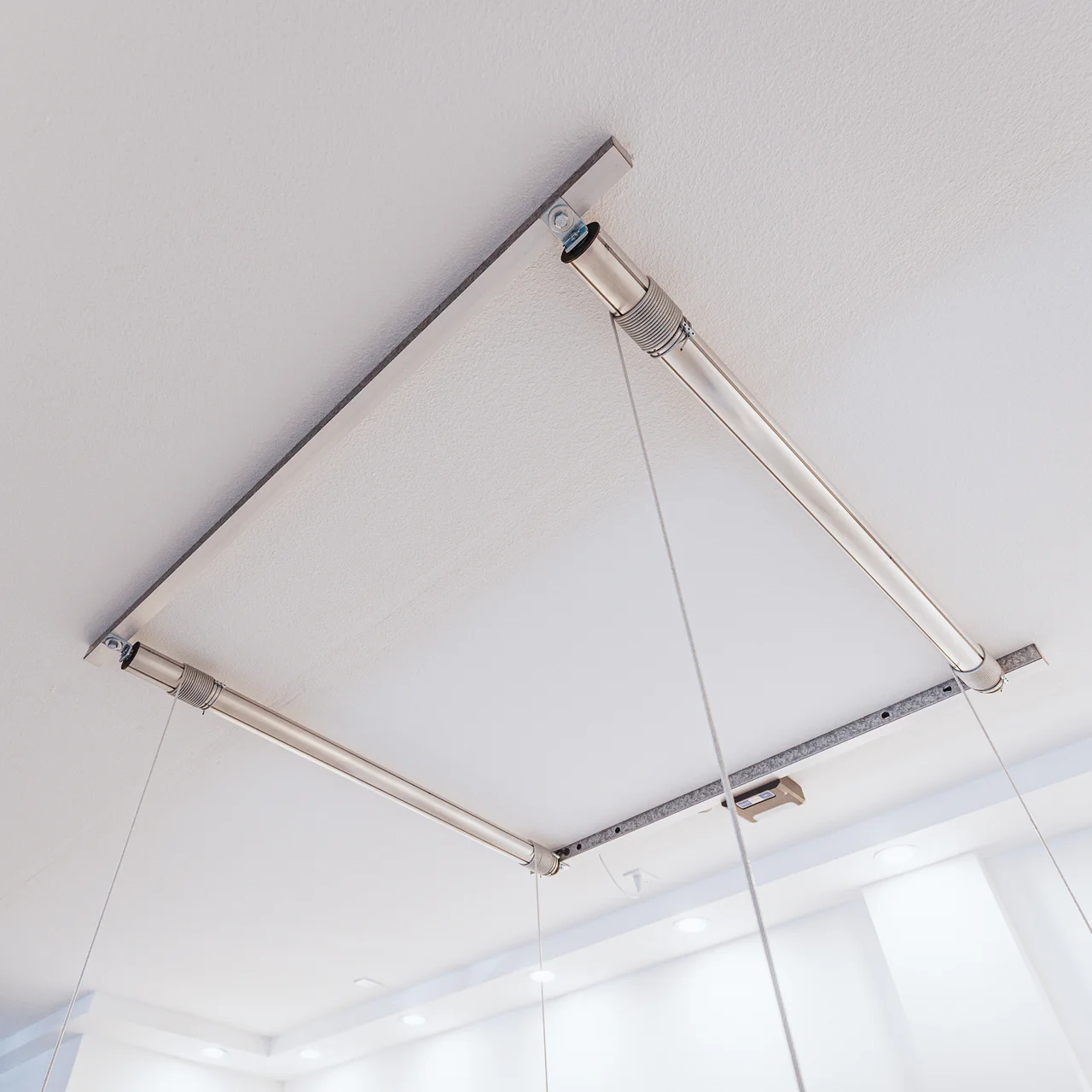

Ceiling Support:

• Type:(2) 1 5/8″ x 60″ strut channel
• Fasteners:(8) 5/16″ x 4″ SPAX© Lag Bolts
• Mounting Area: 5′ x 5′ over 3 joists/rafters

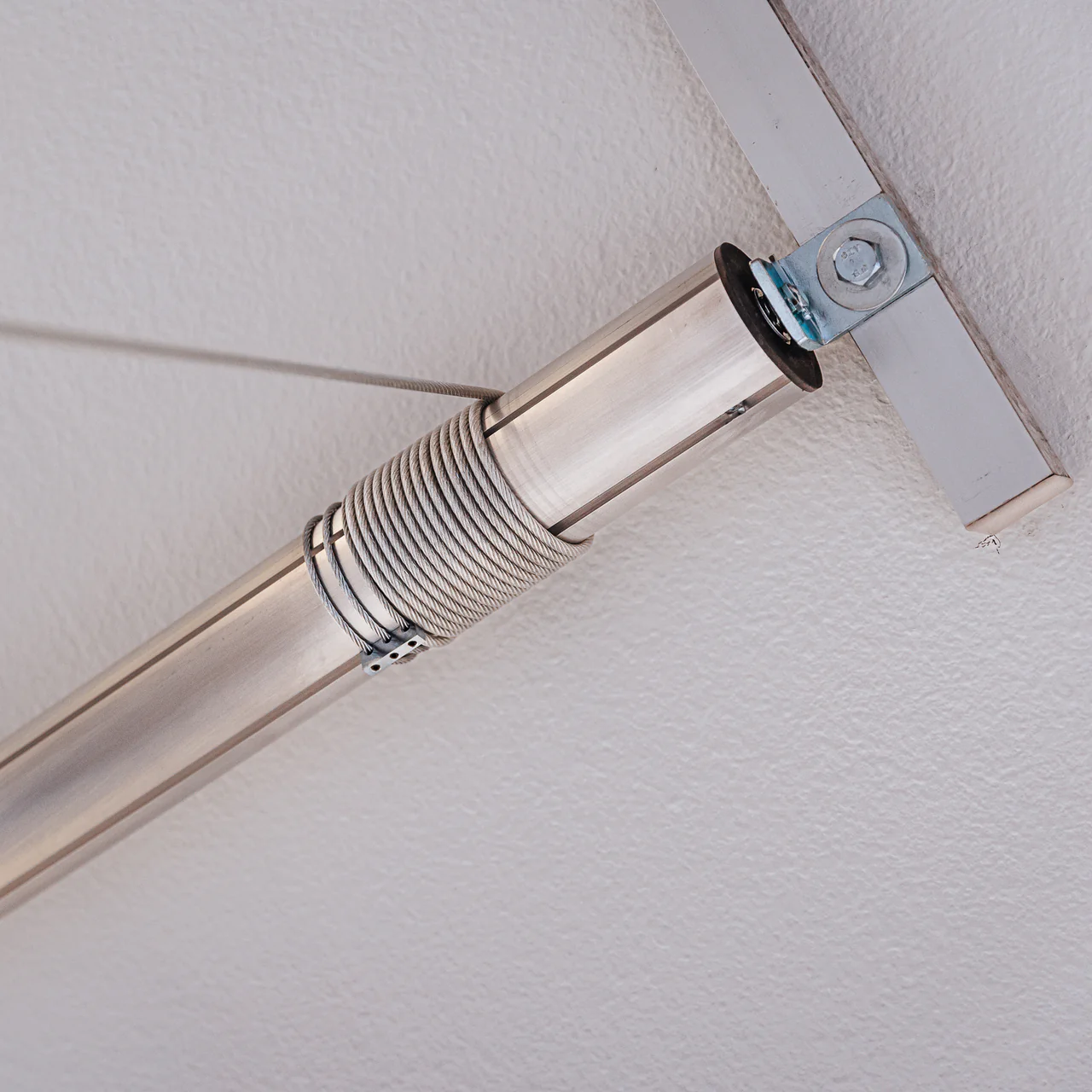

• Cable:3/16” Vinyl-coated Steel 7×19
• Cable Strength:4,200 lbs

Operating Requirements:

• Switch Voltage:110V / 120V
• Transmitter:433.92 MHz
• Electrical Cord: 10 FT / 16 gauge / NEMA 5-15
• Min. circuit size: 15 amp (Standard household)

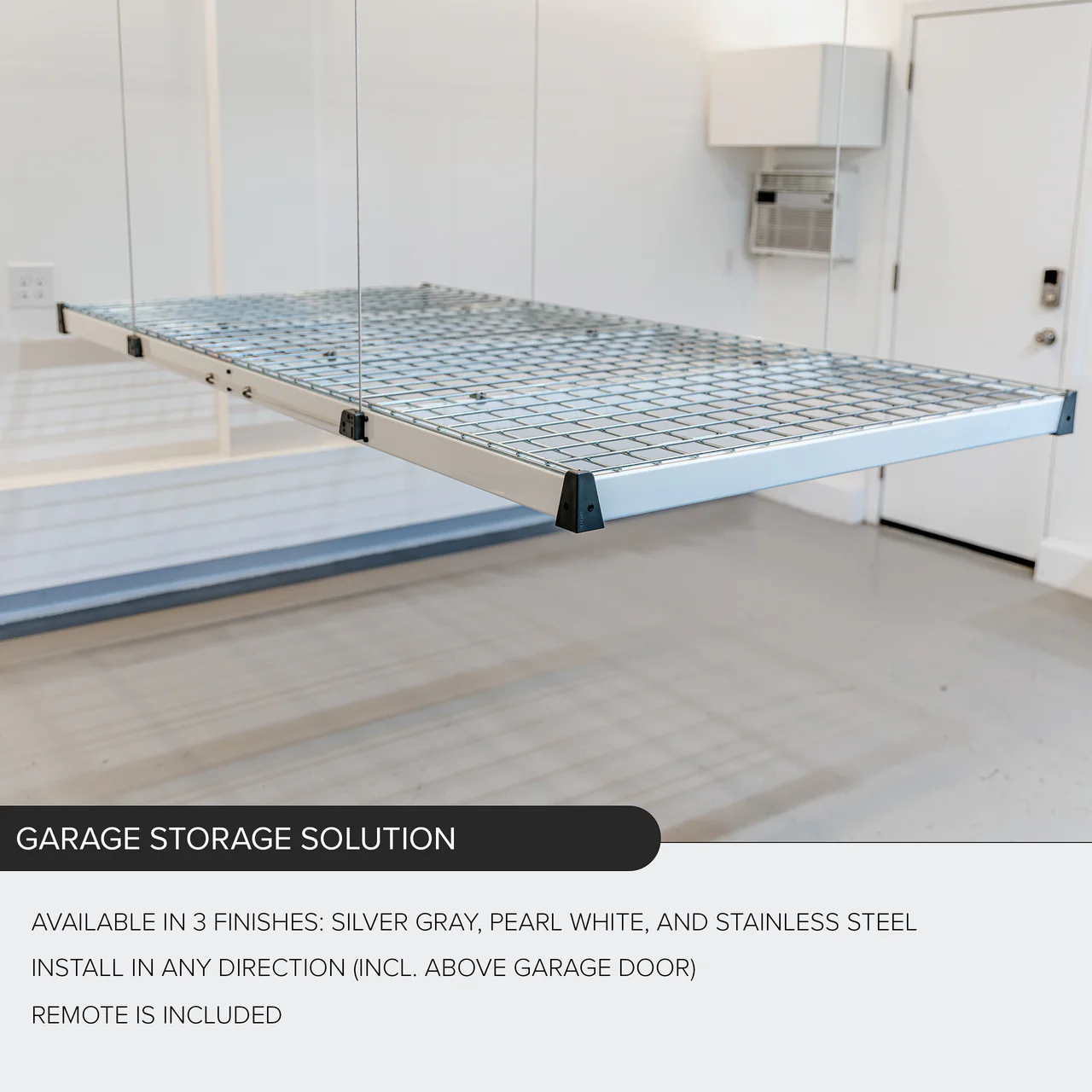

Platform Specs:

• Thickness:2.5 inches
• Support Frame: C-Channels (15-gauge)
• Face material x 3 galv. Wire Mesh (4 gauge)

Motors:

• Type: IP44 (T-Motor)
• Rated Power:680 W
• Rated Current:6.0 A
• Voltage / Phase: 100- 120V AC / Single
• Tube Diameter:85mm (3-3/8 in)
• Motor speed:11 rpm
• Duty Cycle @ Max. Capacity min on, 15 min off
