Remote Controlle Auxx One Heavy Lift

Upgrade your lifting capabilities with the Wireless Remote Control Auxx-One Heavy Lift by Auxx Lift. Enjoy the convenience of wireless control as you effortlessly lift heavy objects. Say goodbye to manual labor and hello to ease with this top-of-the-line heavy lift.

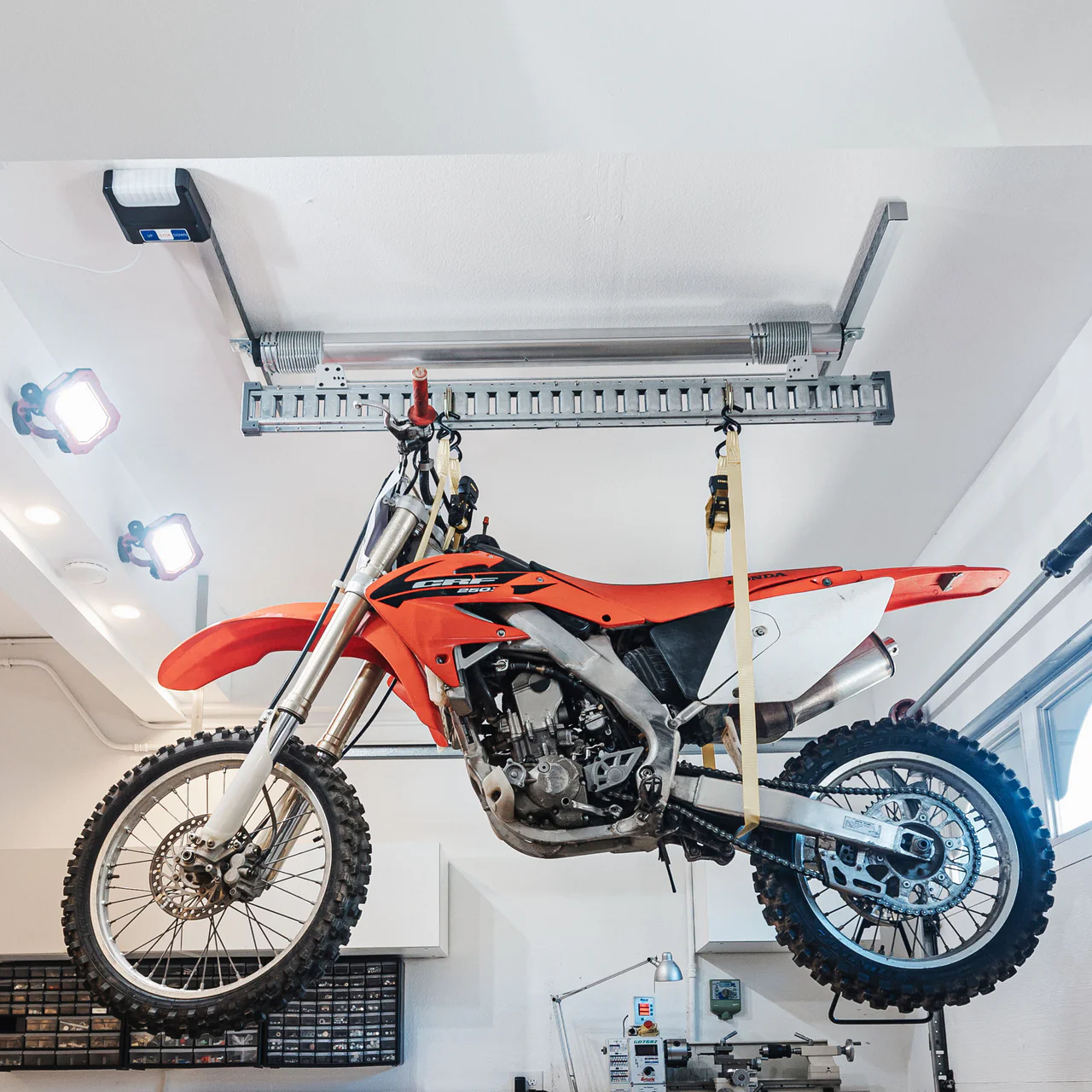

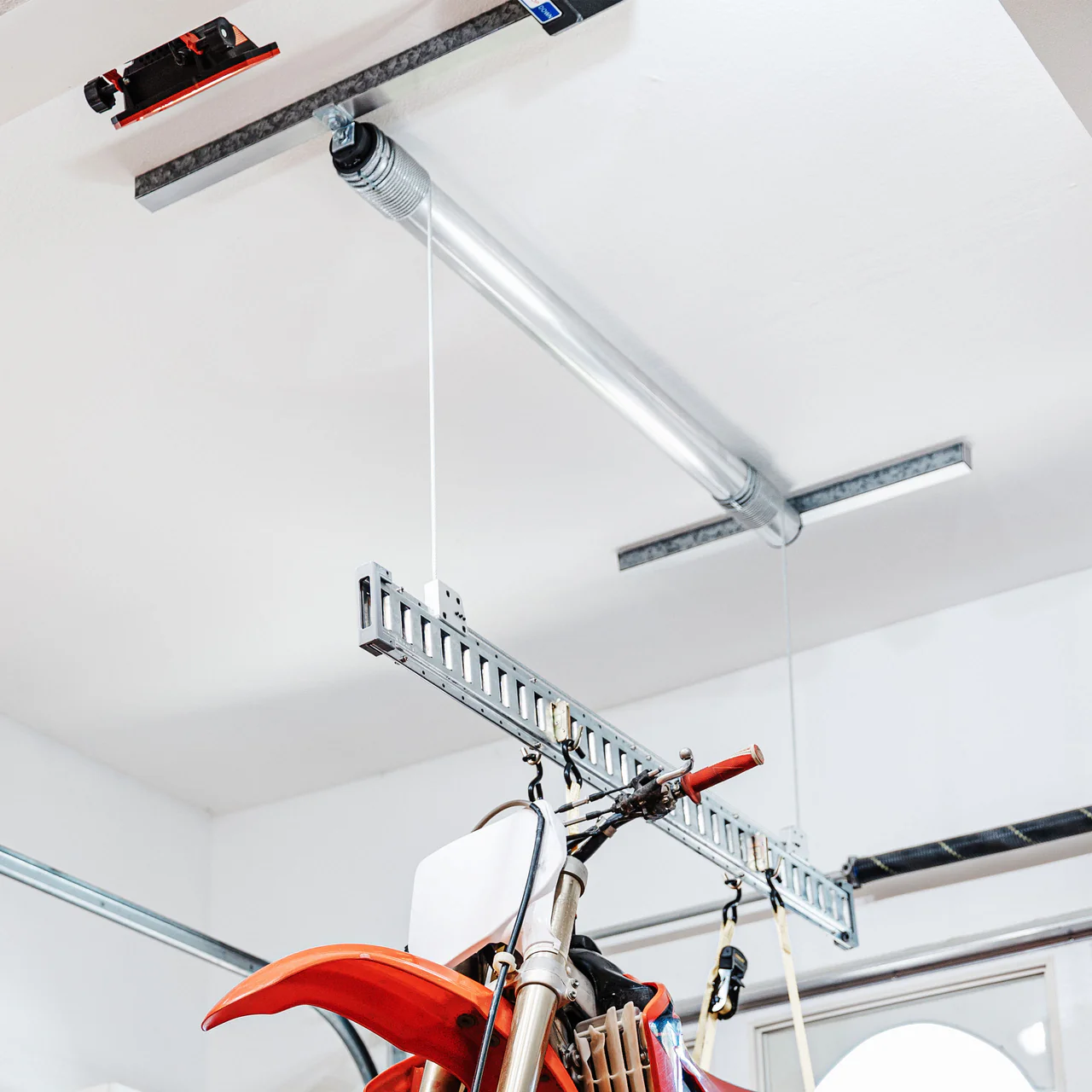

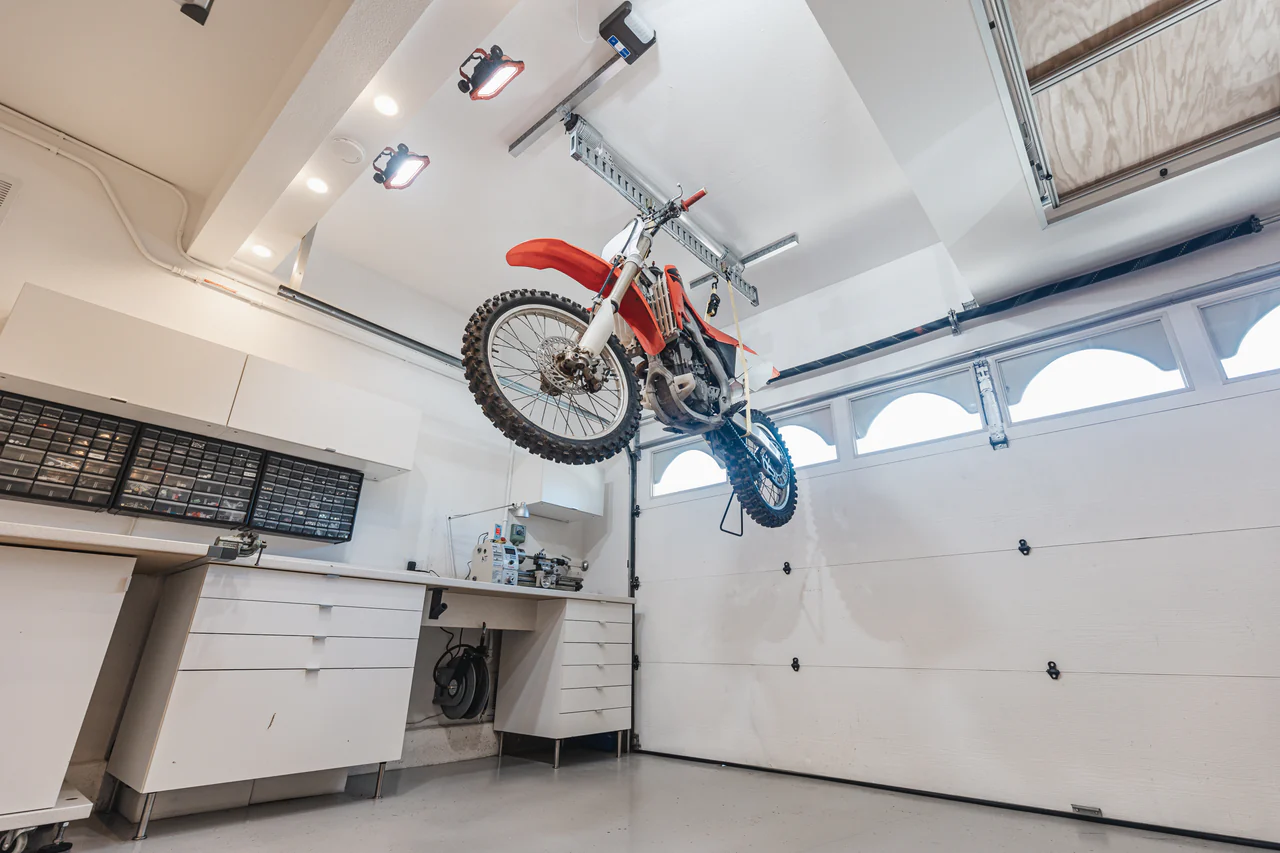

Our single motor lifter is the ideal storage solution for a wide variety of heavy, bulky items like Truck Tops, Jeep Tops, Rooftop Tents, Canoes, Kayaks, Fifth Wheel Hitch, Bikes, and many more. Thanks to our powerful motor with a 400 lbs lifting capacity. All controlled via our wireless remote control.

Specifications:

• Model: Auxx-One 1400
• Lifting Capacity: Up to 400 lbs
• Max. Travel Distance¹:22 ft
• Weight:
• Speed: Avg 30 seconds for 9′ ceilings

Ceiling Support:

• Type:(2) 1 5/8″ x 30″ strut channels
• Fasteners:(6) 5/16″ x 4″ SPAX© Lag Bolts
• Cable:3/16” Vinyl-coated Steel 7×19
• Cable Strength²:4,200 lbs

Operating Requirements:

• Switch Voltage:110V / 120V
• Transmitter:433.92 MHz
• Electrical Cord: 10 FT / 16 gauge / NEMA 5-15
• Min. circuit size: 15 amp

Platform Specs:

• Thickness:2.5 inches
• Support Frame: C-Channels (15-gauge)
• Face material x 3 galv. Wire Mesh (4 gauge)

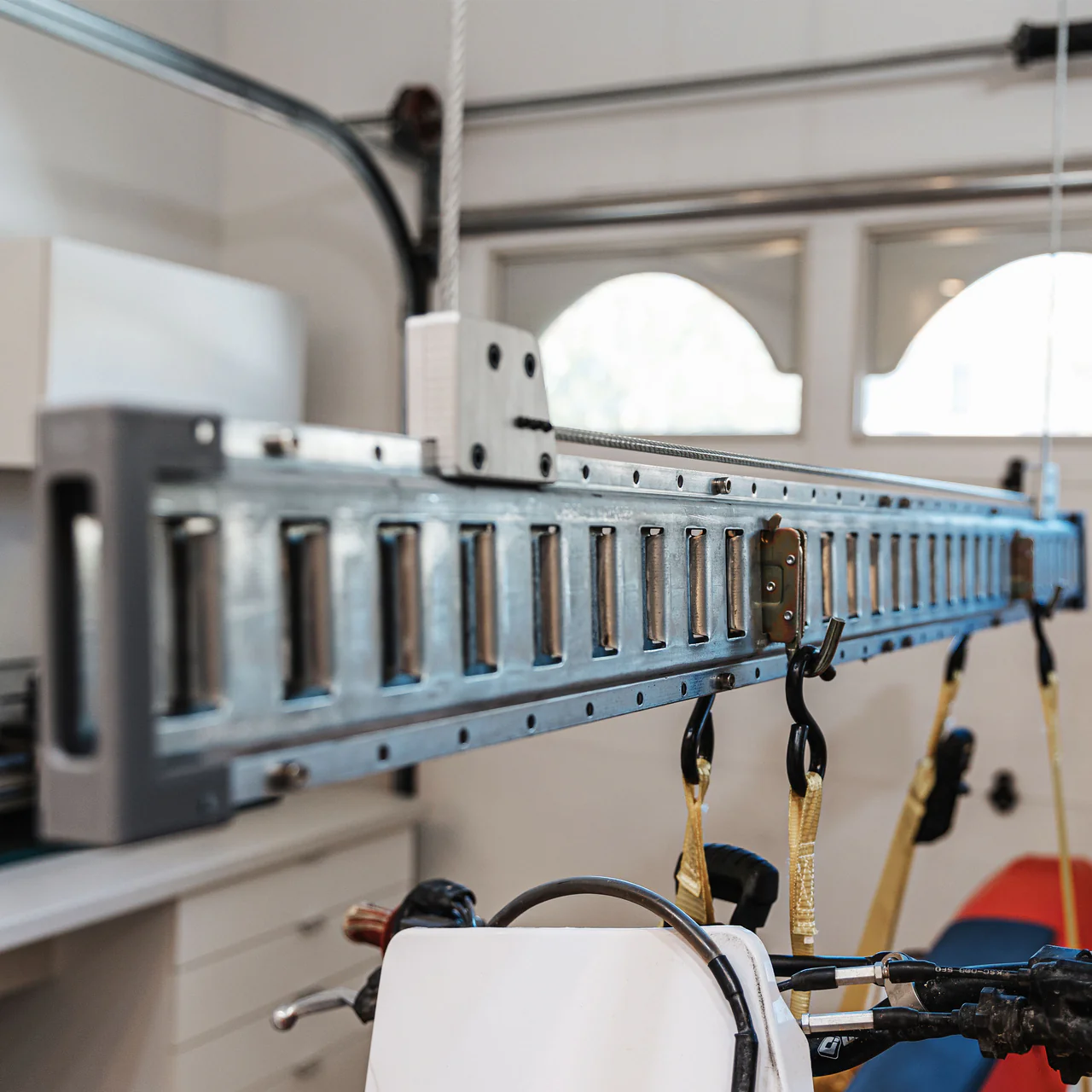

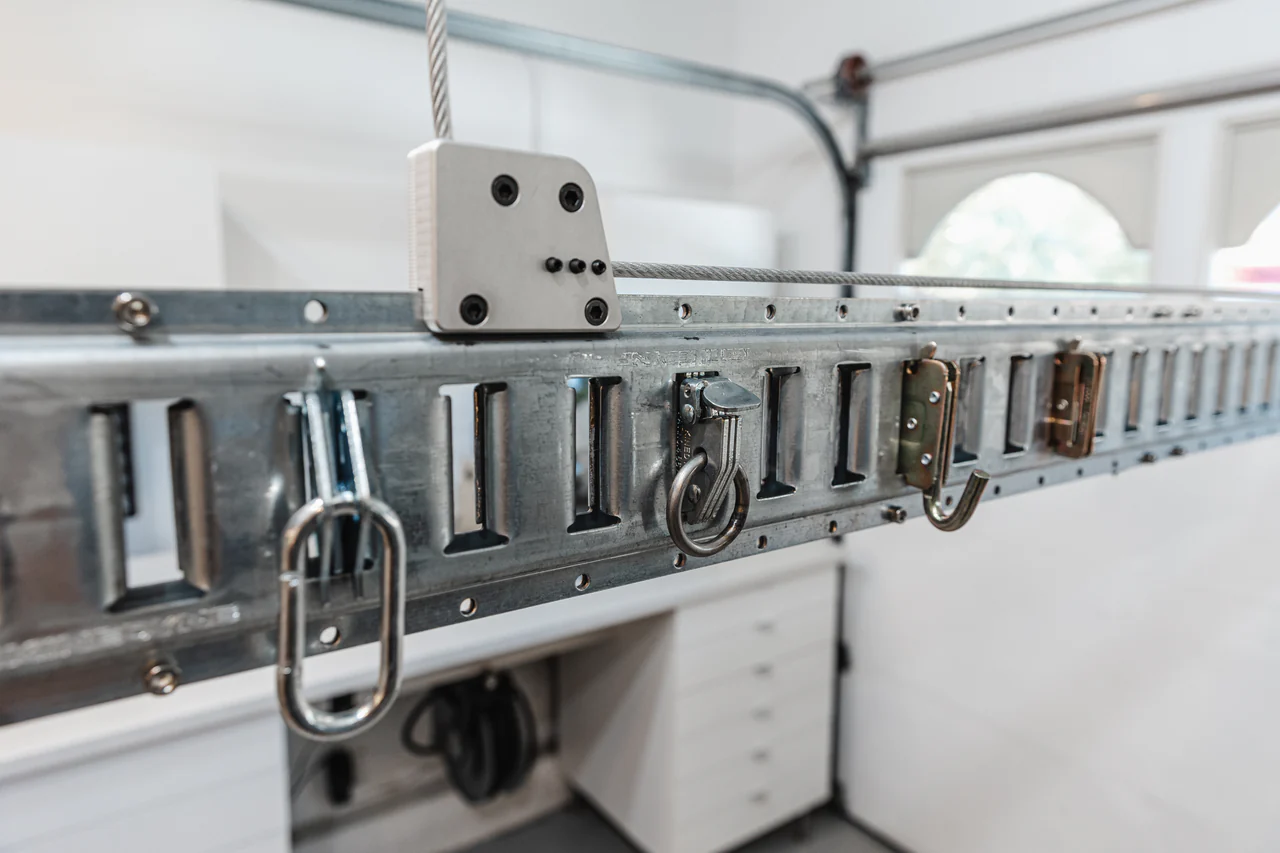

E-Beam Lifting Frame:

• Height:5 inches
• Length:5 ft
• Material: Galvanized Steel
• Slot Spacing: 2 in on center

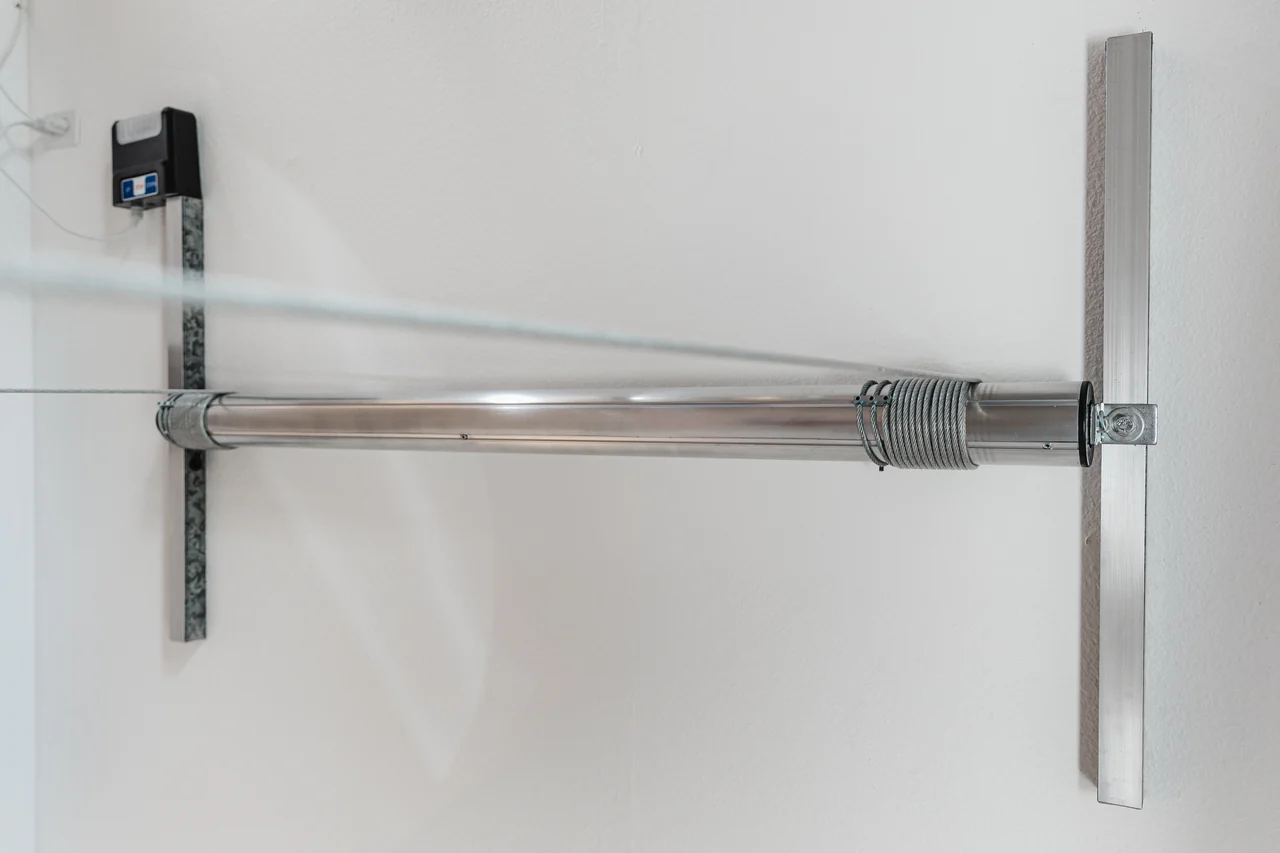

Motors:

• Type: IP44 (T-Motor)
• Rated Power:680 W
• Rated Current:6.0 A
• Voltage / Phase: 100- 120V AC / Single
• Tube Diameter:70mm (2-3/4 in)
• Motor speed:13 rpm
• Duty Cycle @ Max. Capacity min on, 15 min off
